NEXGA S1 spider power meter
THE NEXT-GENERATION POWER METER SPIDER

NEXGA S1 Spider Power Meter

Pro-level accuracy. Breakthrough lightweight design.

From laboratory calibration to real roads, S1 delivers accurate, consistent and traceable data for every pedal stroke.

S1 HIGHLIGHTS

Professional measurement, built into every ride.

From sensing and computation to calibration, connectivity and protection, S1 puts professional power measurement in a lightweight body.

01

10 s AVG

1% power accuracy

See how each effort translates into watts through measured power data.

Session average power03:07–58:59
NEXGA S1

156.5 W

Favero Assioma Pro RS

155.4 W

W
Recording time (mm:ss)10-second means · final interval 3 s

Hover or tap the chart to compare average power for each interval.

16-Bit ADC

02

16-Bit ADC

100 Hz hardware sampling with fine 16-bit resolution

180-hour battery

03

180-hour battery

Long-lasting power for repeated training and distance rides

Dual connectivity

04

Dual connectivity

ANT+ and Bluetooth 5.0 support for leading devices

USB-C charging

05

USB-C charging

Fast charging through a convenient universal port

Ultra-thin, only 95 g*

06

Ultra-thin, only 95 g*

A slim 10.6 mm body with less added weight

IPX7 water resistance

07

IPX7 water resistance

Potted electronics and a sealed housing for dual-layer protection

Dynamic torque calibration

08

Dynamic torque calibration

Consistent accuracy across the full power range

LABORATORY-GRADE ACCURACY

±1% accuracy.
Trust every watt.

Advanced strain gauges combine with automatic temperature compensation and intelligent zeroing to capture every power change, even through temperature swings and demanding road conditions.

Power accuracy
±1%
High-resolution ADC
16Bit
Automatic temperature compensationIntelligent auto-zeroLeft/right power balance

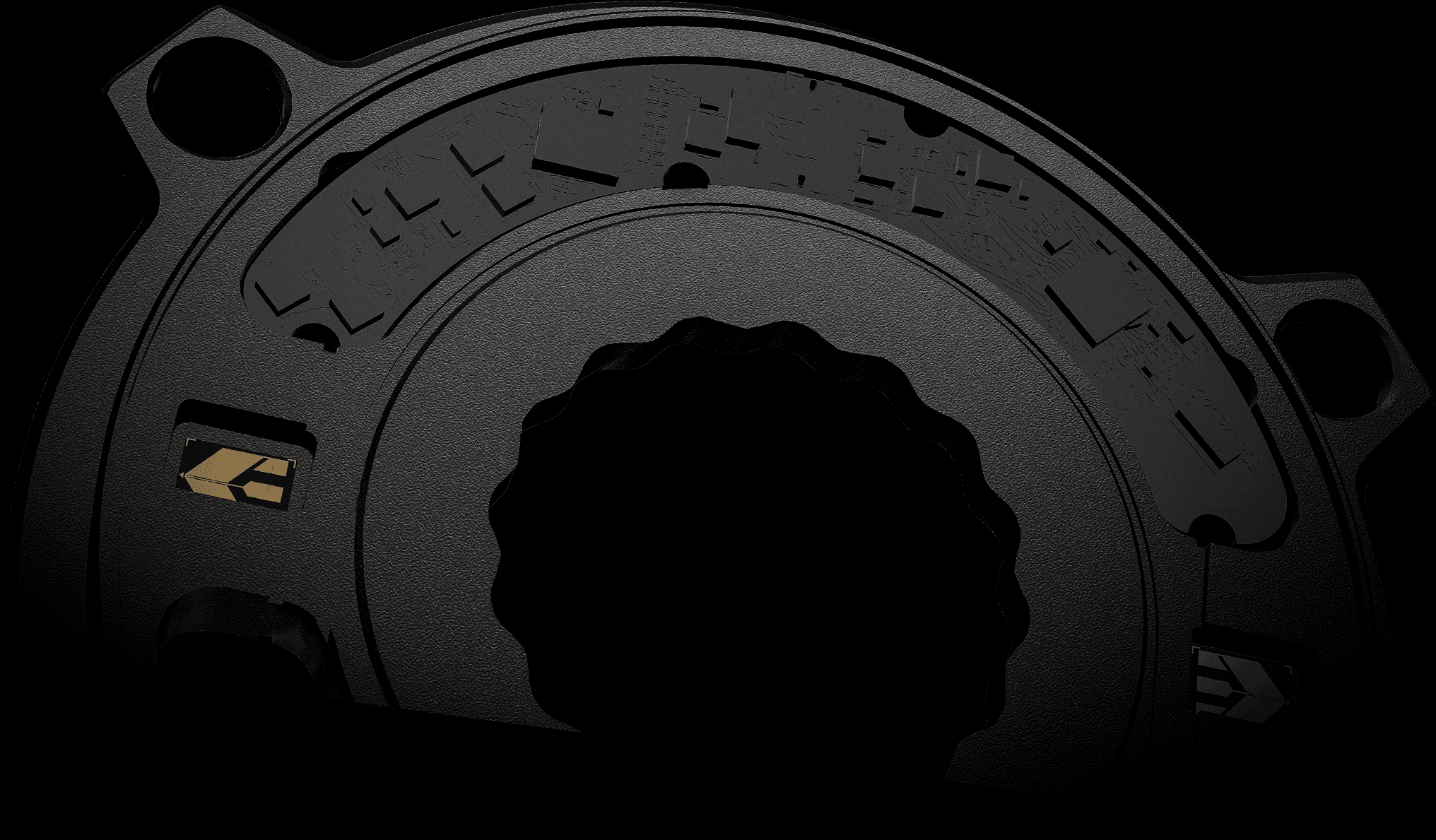

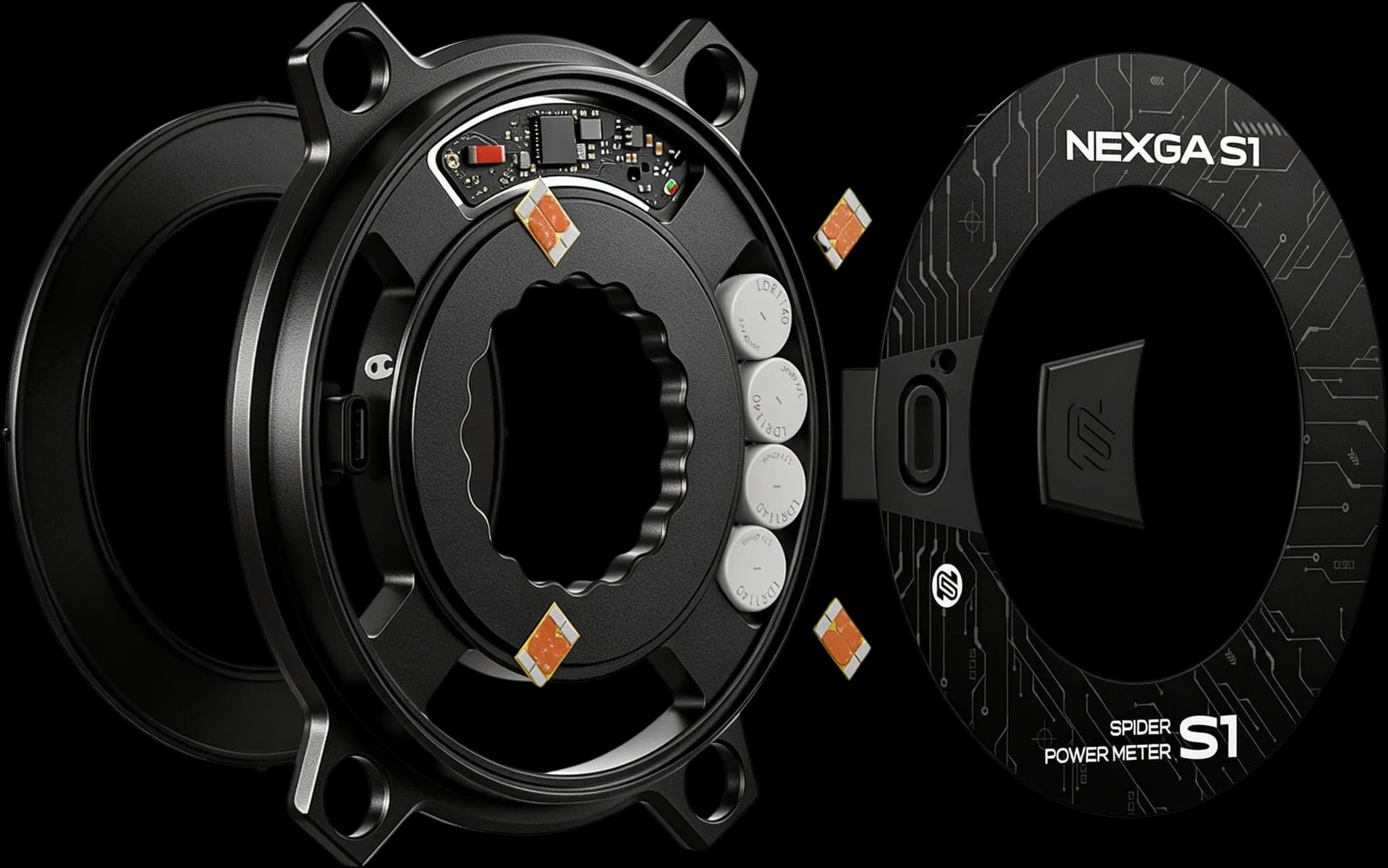

NEXGA S1 ±1% power accuracy construction

100 Hz ADC HARDWARE SAMPLING

Sample more often.
Resolve finer detail.

Follow each change in effort with 100 Hz hardware sampling. A 16-bit ADC resolves finer differences in signal amplitude, capturing more detail in every pedal stroke.

ADC hardware sample rate
100Hz
Sampling interval
10ms

100 Hz · Denser sampling

100 samples/s, one every 10 ms

100 Hz · Denser sampling

16-bit · Finer resolution

65,536 quantization levels (2¹⁶)

16-bit · Finer resolution

Curves illustrate sampling principles, not measured data.

NEXGA S1 power meter surrounded by 100 sampling points
16-bit ADC chip

16-bit ADC

At a steady 60 rpm: 1 revolution, 1 second, 100 samples

Each point represents one ADC sample

SIX-AXIS GYROSCOPE SENSING

Keep up with cadence.
Less road interference.

Sense rotational changes in detail at 240 Hz. From acceleration to rough roads, S1 keeps pace with your pedal stroke.

Gyroscope sample rate
240Hz
Cadence accuracy
±0.3%

Denser sampling captures more changes.

More angular velocity samples in the same time.

Denser sampling captures more changes.

Curves illustrate sampling principles, not measured data.

NEXGA S1 power meter with illustrated rotational motion
Six-axis IMU chip

Six-axis gyroscope

Angular velocity sensing · Track rotational changes

240 Hz · 240 samples per second

DYNAMIC TORQUE CALIBRATION

Every unit verified.
Accuracy documented.

Every S1 is compared in real time with a high-precision torque sensor across the complete power range and ships with its own calibration report.

Low · medium · high verification
FULL RANGE
Factory dynamic calibration
EVERY UNIT
Individual calibration reportMeasurement consistency verifiedTraceable calibration data
NEXGA S1 dynamic torque calibration equipment

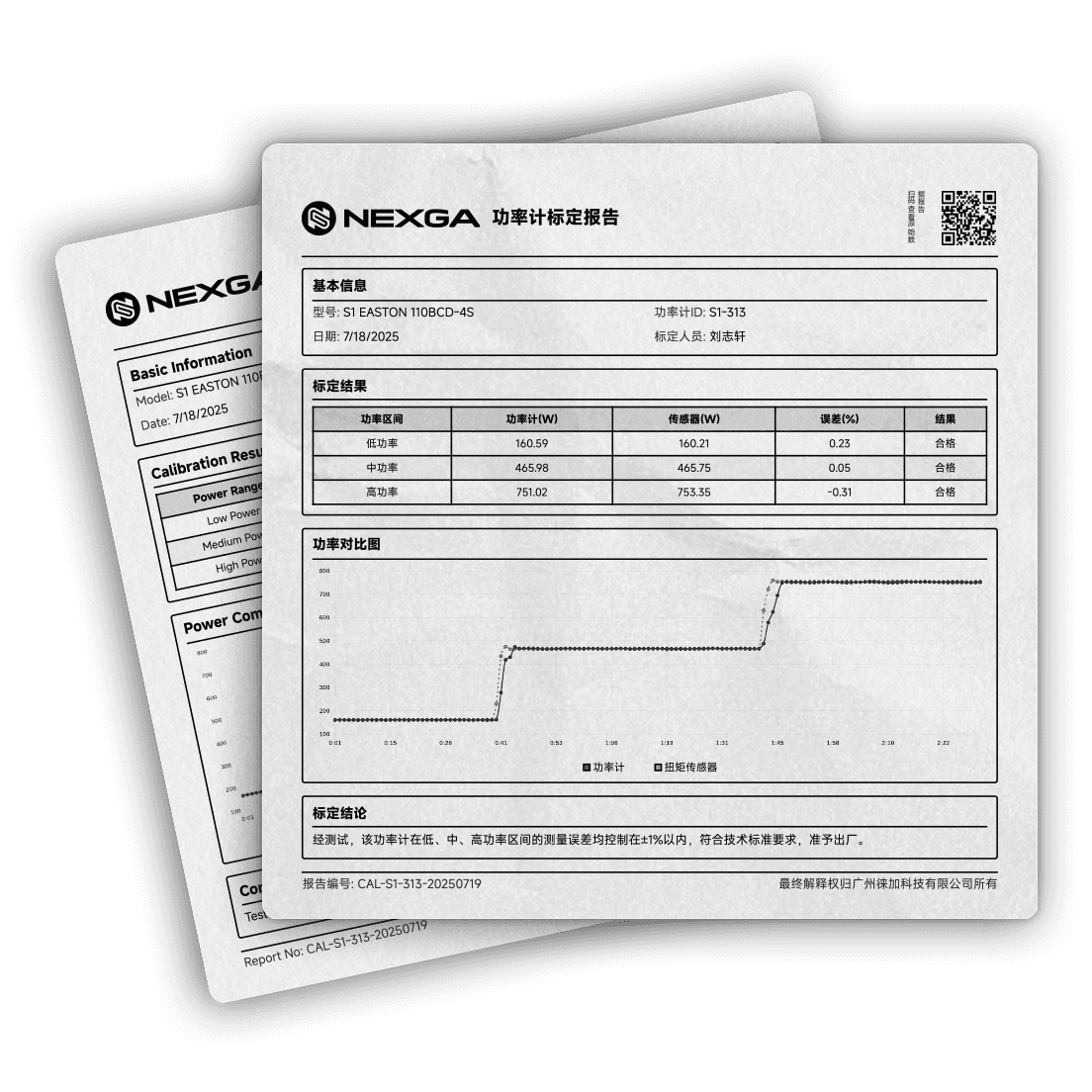

Individual NEXGA S1 calibration report

REAL-WORLD POWER COMPARISON

Put accuracy
to the road test.

Compare every effort from the same ride. Complete NEXGA S1 and Favero Assioma Pro RS recordings are shown as 10-second averages to reveal changes in power.

Relative mean power difference
+0.67%
Correlation coefficient
0.955

REAL-WORLD RIDE

10 s AVG

Same ride. Power compared.

See how each effort translates into watts through measured power data.

Session average power03:07–58:59
NEXGA S1

156.5 W

Favero Assioma Pro RS

155.4 W

W
Recording time (mm:ss)10-second means · final interval 3 s

Hover or tap the chart to compare average power for each interval.

USB-C FAST CHARGING & LONG BATTERY LIFE

Charge quickly.
Ride farther.

The universal USB-C port works with leading chargers and power banks. A full charge takes about two hours, preparing S1 for long-distance rides.

Maximum battery life
180hours
Adds up to 50 hours of riding
15min

* Actual battery life and charging time vary with environment, equipment and usage.

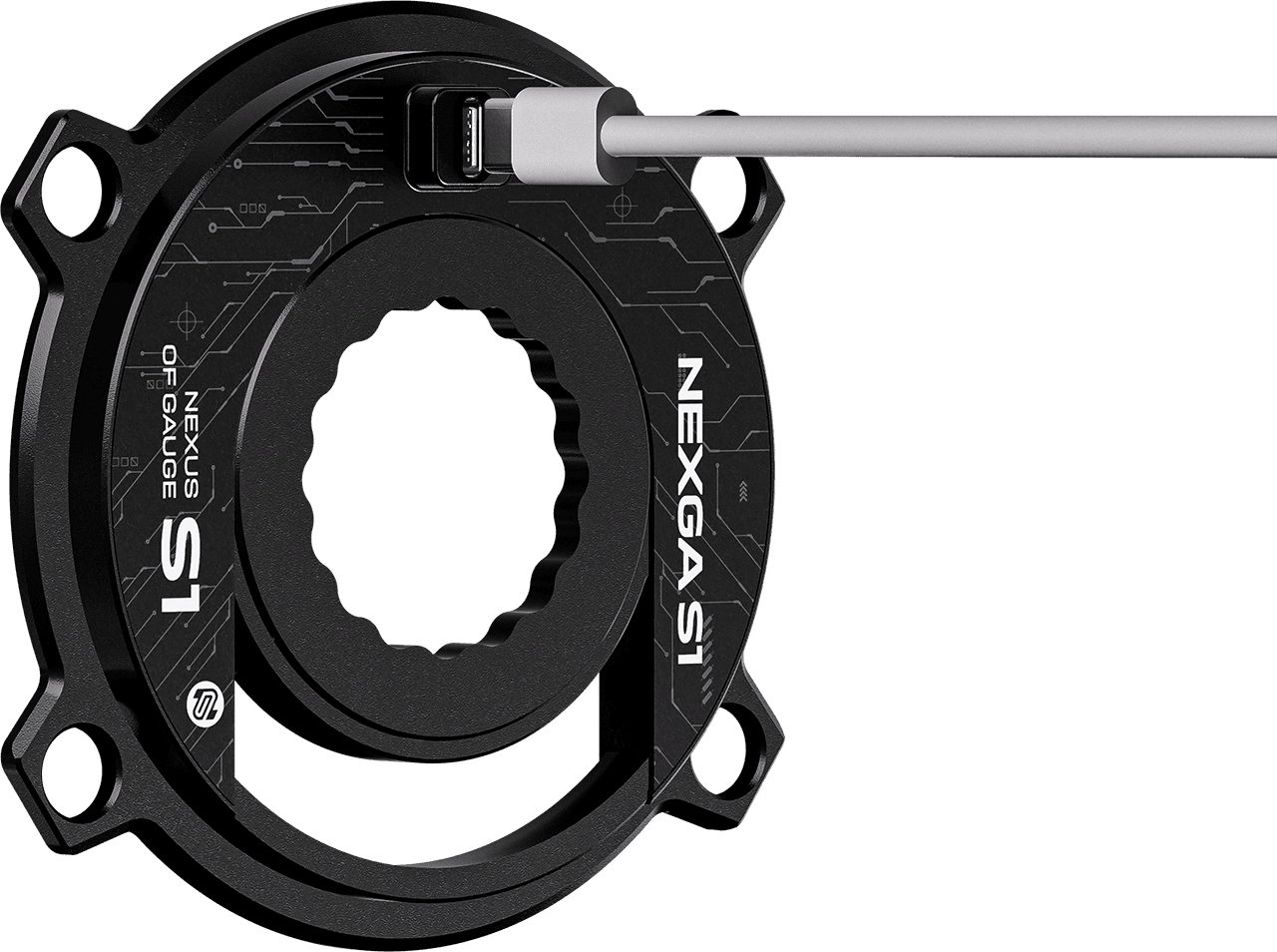

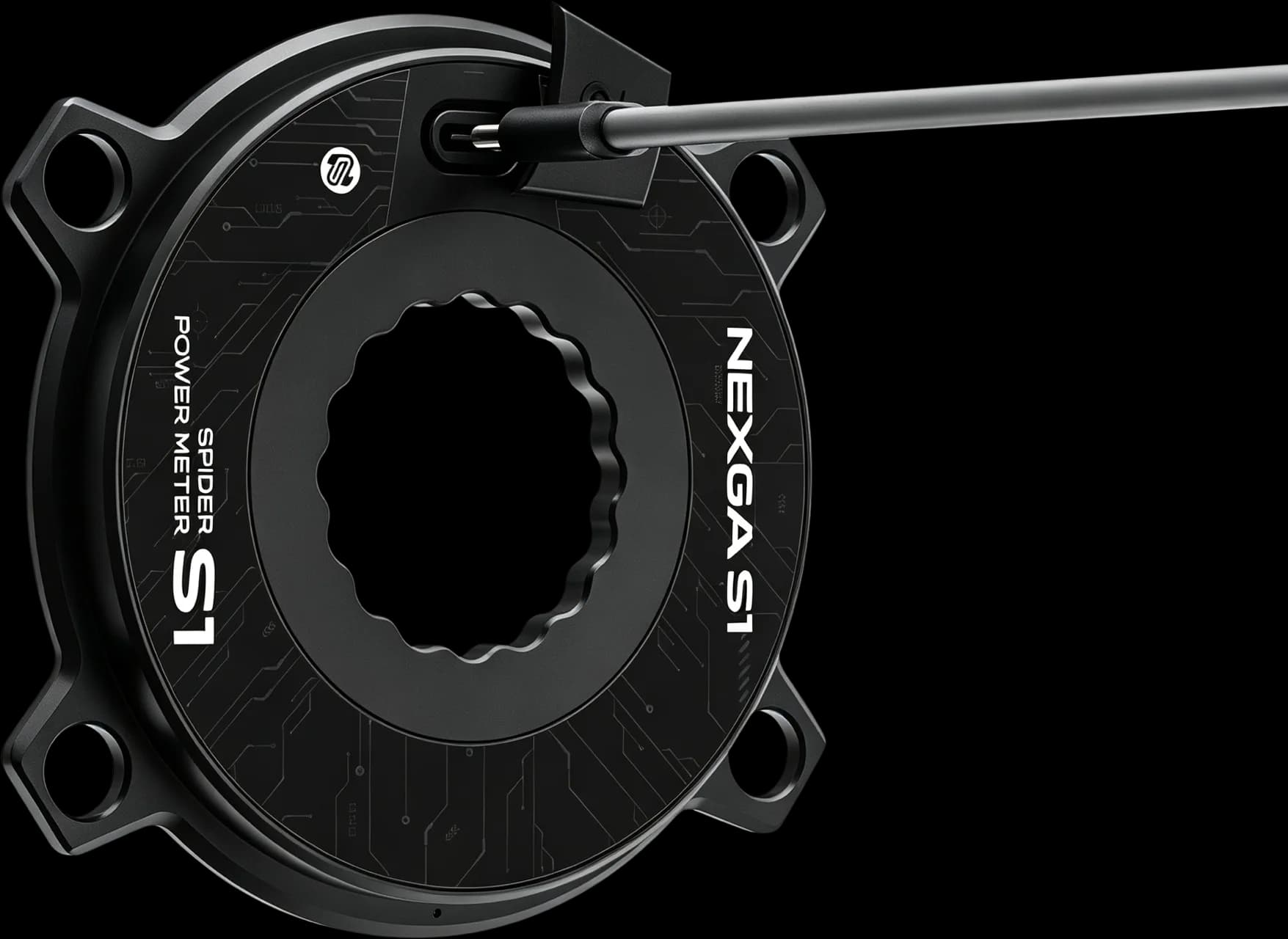

NEXGA S1 USB-C charging port

ANT+ & BLUETOOTH DUAL CONNECTIVITY

Multiple devices.
Real-time sync.

Compatible with leading Garmin, Wahoo and Sigma bike computers and training apps, with real-time multi-device sync for seamless power and cadence data.

Bike computers and trainers
ANT+
Phones and training apps
BLE5.0

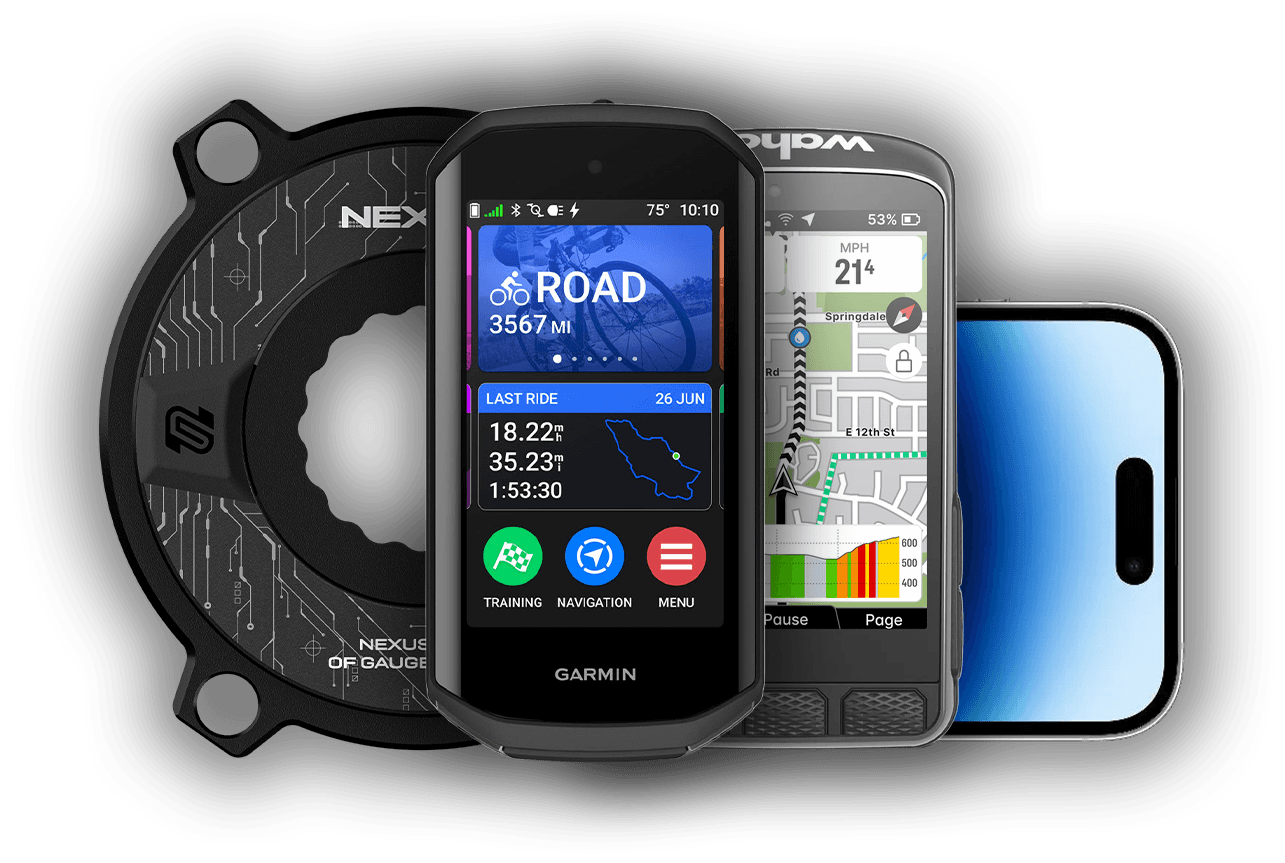

NEXGA S1 dual wireless connectivity

DUAL-LAYER WATER PROTECTION

Sealed in two layers.
Ready for the rain.

Potted electronics and an adhesively sealed housing provide water protection from the inside out, ride after ride.

Water resistance
IPX7
Immersion depth
1m
Immersion time
30min
Dual-layer protectionPotted electronicsSealed housing

IPX7 rating: withstands immersion in 1 meter of water for 30 minutes. Follow the product manual for use and maintenance.

Water droplets and splashes around the NEXGA S1 power meter

LIGHT & SLIM

Lighter.
Slimmer, too.

A lightweight body reduces added weight, while a slim profile keeps installation compact. Performance, built into a lighter, thinner form.

Lightweight body
95g*
Body thickness
10.6mm
Compact constructionSlim profile

* Weight varies by model and configuration. Refer to the specifications for your selected model.

NEXGA S1 held between fingers, showing its slim 10.6 mm body
Performance in a lighter, slimmer body.

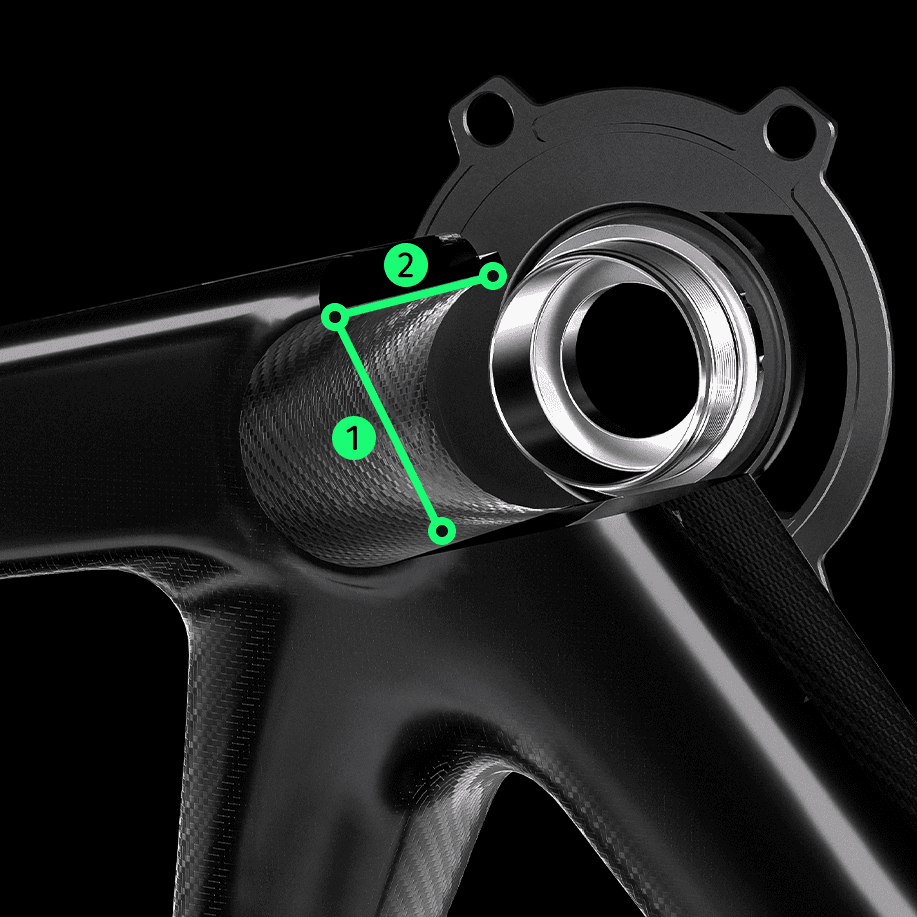

COMPACT DIMENSIONS & FRAME COMPATIBILITY

Broad compatibility.
Built for modern frames.

Compact bottom-bracket clearance fits most modern frames, while precise installation dimensions simplify setup.

Drive-side outer diameter
≤61mm
Installed total width
90.5–92mm
T47BB386Large-diameter BB

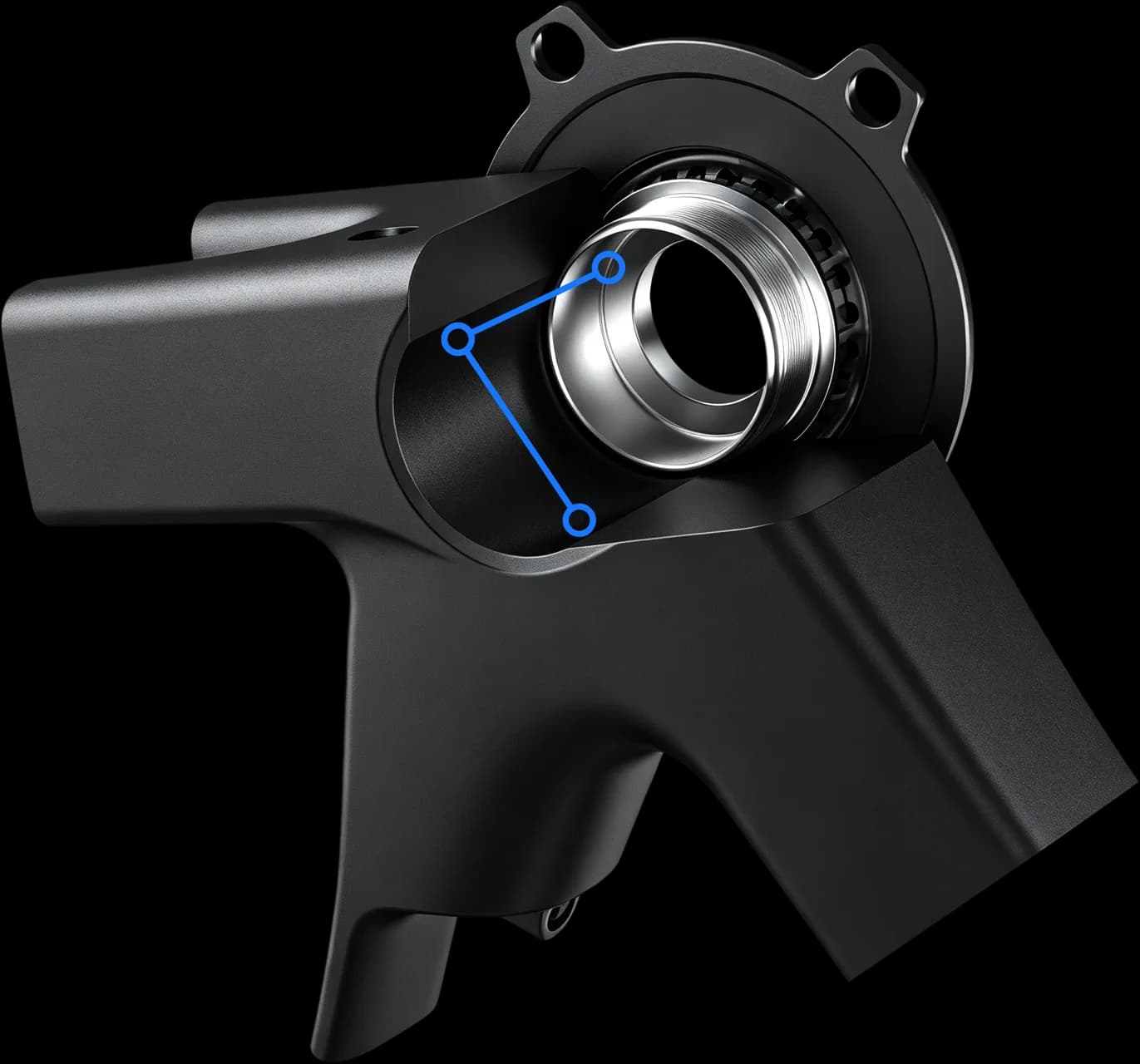

NEXGA S1 frame compatibility diagram

TECHNICAL SPECIFICATIONS

NEXGA S1 specifications

Measurement

Power accuracy
± 1.0 %
Power range
0 - 2200 W
Cadence range
30 - 220 rpm
Data metrics
Power, cadence, left/right balance, pedal smoothness

Power

Battery capacity
180 mAh
Battery life
Up to 180 hours
Rated charging input
5V / 0.2A
Charging port
USB Type-C

Physical

Weight
≤ 95 g
Water resistance
IPX7
Operating temperature
-10°C – 50°C
Wireless
ANT+ / Bluetooth 5.0

The listed data is based on testing in standard laboratory conditions. Actual performance may vary with device settings, riding conditions and usage.

IN THE BOX

Everything you need to get started.

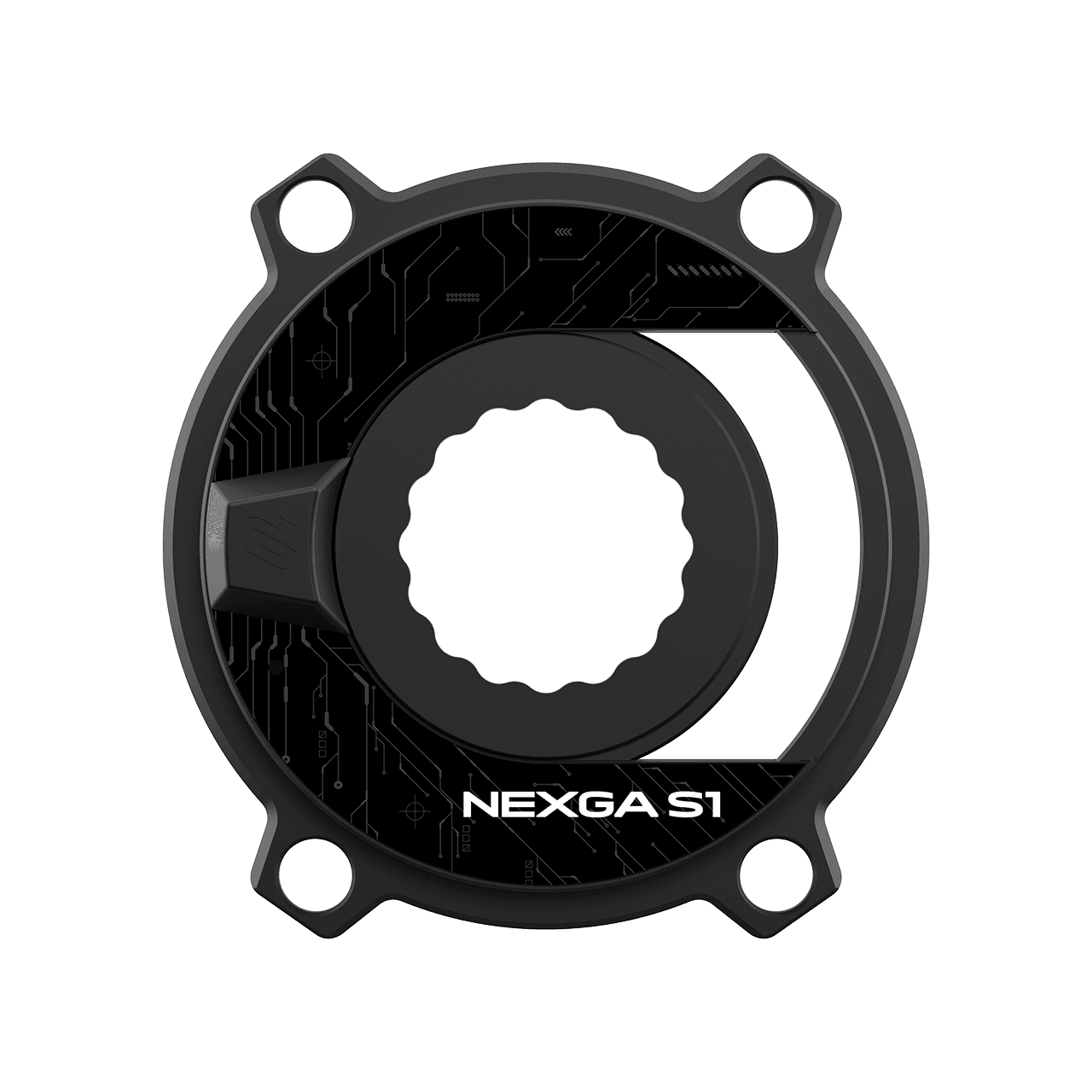

NEXGA S1

NEXGA S1

Power meter spider, dynamically torque-calibrated before leaving the factory.

QTY × 1

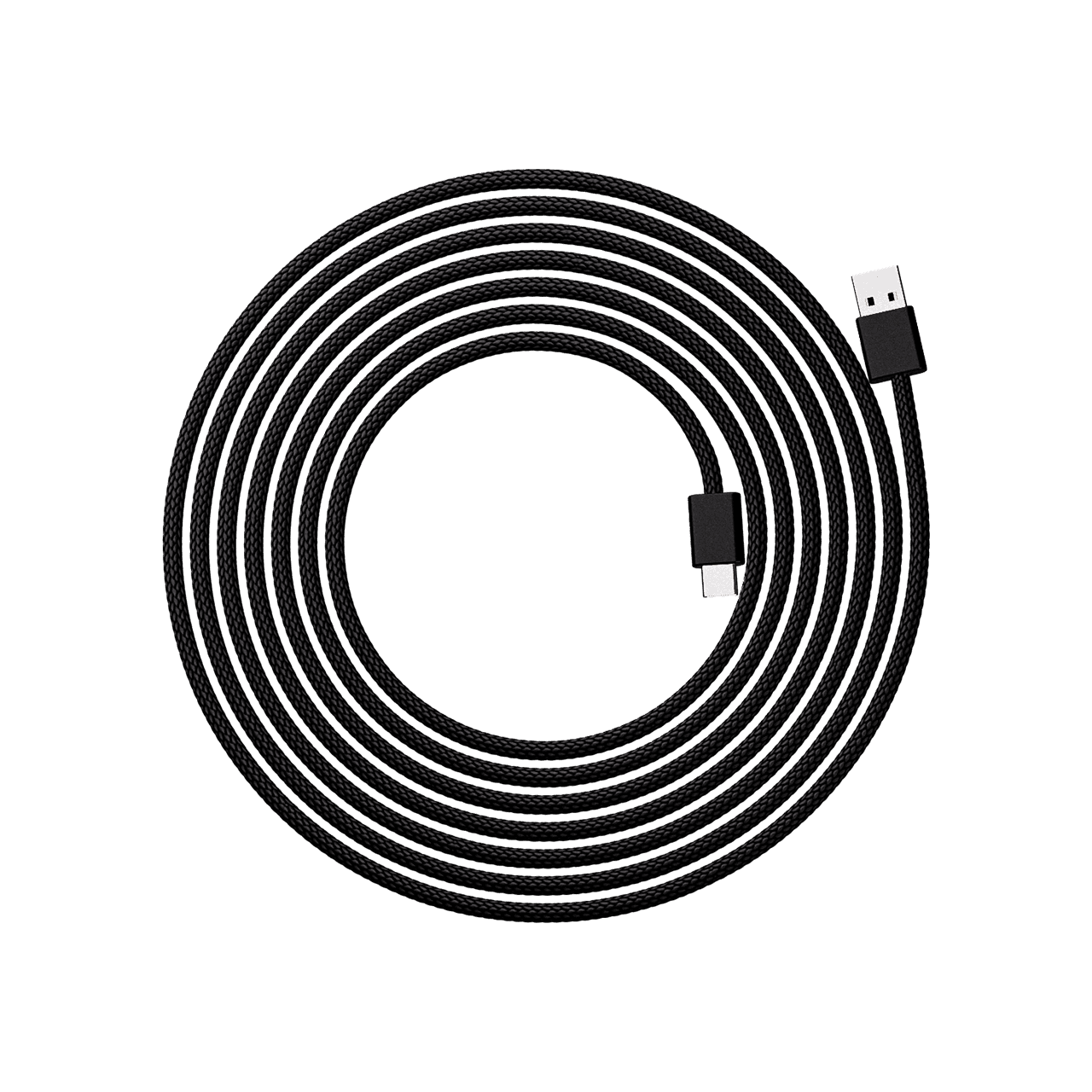

3 m USB-C charging cable

3 m USB-C charging cable

Extra length makes charging easier after installation.

QTY × 1

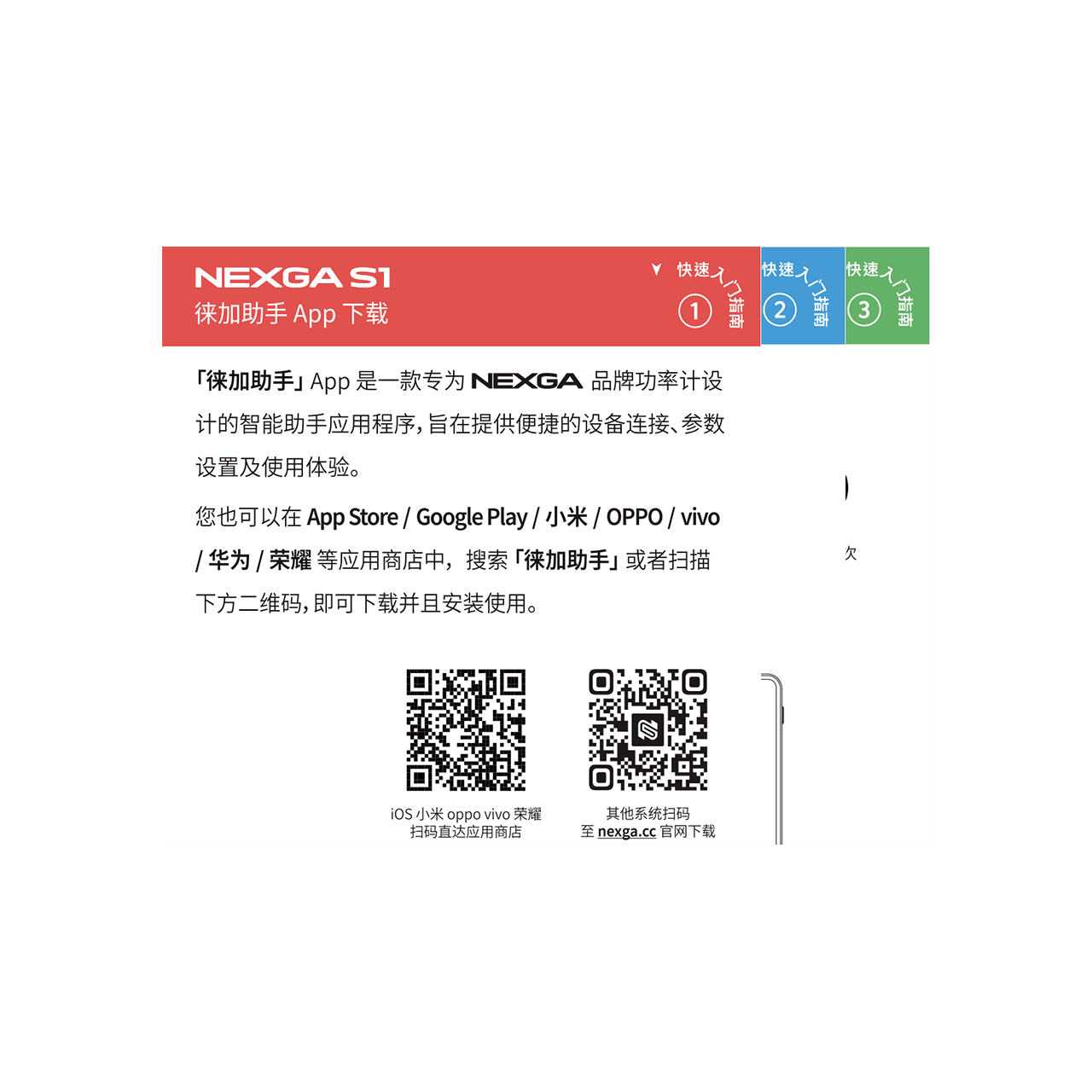

Quick-start guides

Quick-start guides

Get started with installation, connection and first use.

QTY × 1

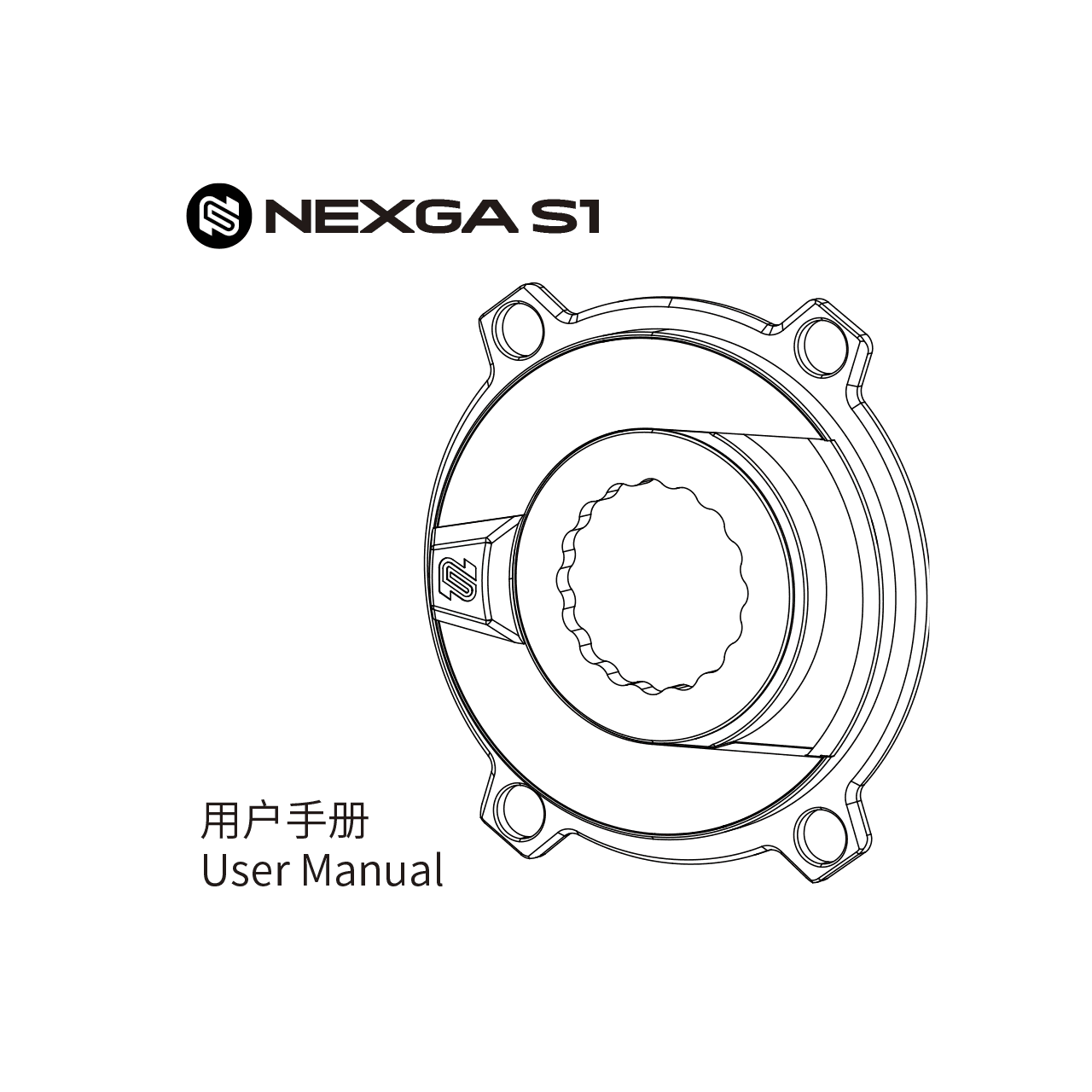

User manual

User manual

Complete setup, connection and operating instructions.

QTY × 1

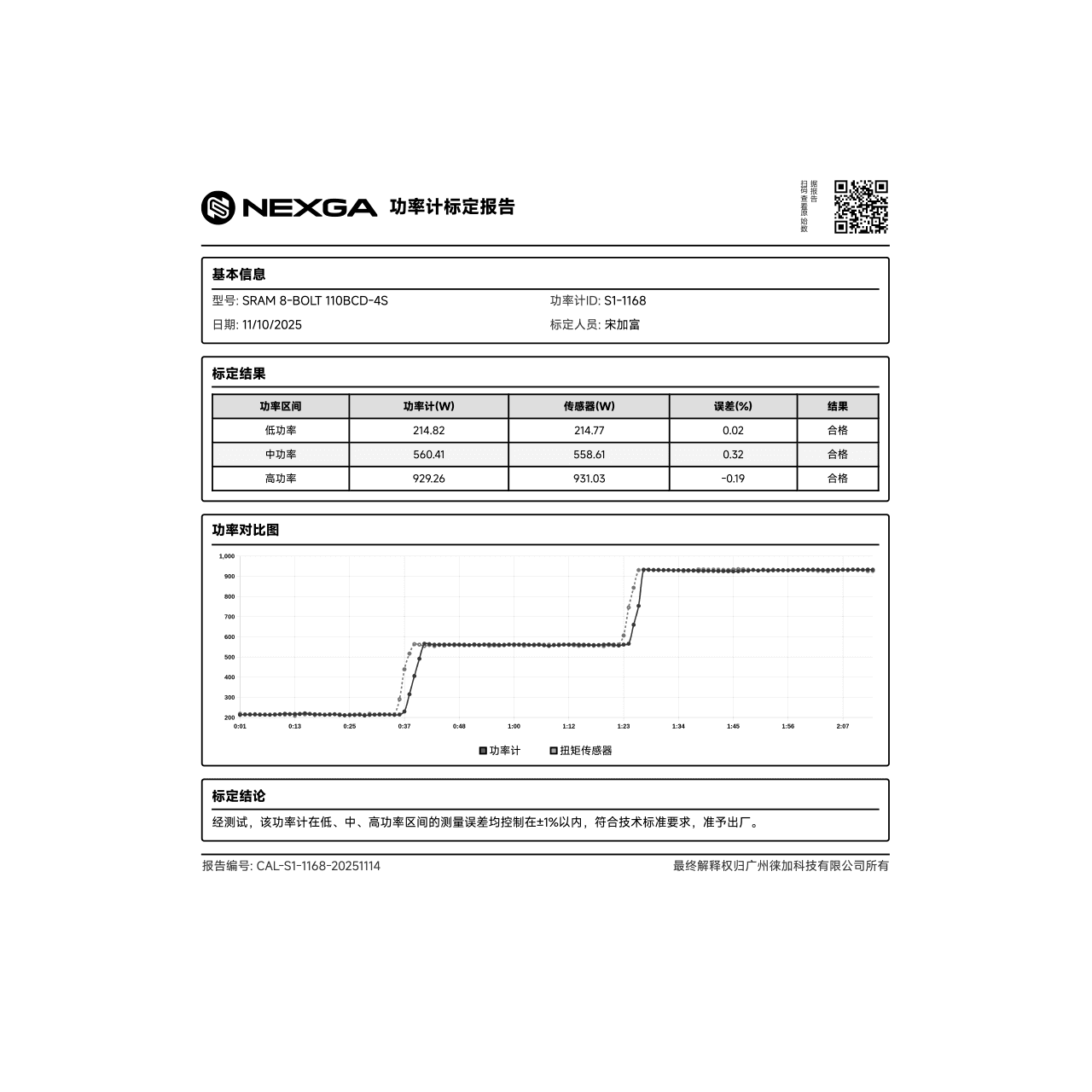

Calibration report

Calibration report

Individual dynamic torque calibration data for your unit.

QTY × 1
Purchase details

MODEL COMPARISON

Find your S1

Start with your riding discipline. Compare BCD, offset and weight to find the right fit for your crankset.

Explore the store

Road

4 models
S1 Power Meter Spider EASTON 110BCD-4S

S1 Power Meter Spider

EASTON 110BCD-4S

Chainring / BCD
110 mm × 4 · 35°
Offset
7.2 mm
Weight
95 g

Compatible cranksets

EASTON EC90 / ELILEE XXE / CYBREI GP3 / INCOLOR SKYPIVOT / CENIT

Details
S1 Power Meter Spider SRAM 8-BOLT 110BCD-4S

S1 Power Meter Spider

SRAM 8-BOLT 110BCD-4S

Chainring / BCD
110 mm × 4 · 35°
Offset
8.1 mm
Weight
97 g

Compatible cranksets

SRAM FORCE, RED / QUARQ / Cane Creek eeWings / CRODER SPIRIT / 5DEV

Details
S1 Power Meter Spider SRAM 3-BOLT 110BCD-4S

S1 Power Meter Spider

SRAM 3-BOLT 110BCD-4S

Chainring / BCD
110 mm × 4 · 35°
Offset
8.1 mm
Weight
96 g

Compatible cranksets

SRAM RIVAL, FORCE, RED / PRAXIS ZAYANTE / Senicx PR3, PR2, GR3 / FOVNO AURORA

Details
S1 Power Meter Spider ROTOR ALDHU 110BCD-4S

S1 Power Meter Spider

ROTOR ALDHU 110BCD-4S

Chainring / BCD
110 mm × 4 · 35°
Offset
7.6 mm
Weight
98 g

Compatible cranksets

ROTOR ALDHU / ROTOR ALDHU CARBON / QO RACE / QO GRAVA

Details

Mountain

3 models
S1 Power Meter Spider SRAM 8-BOLT 104BCD

S1 Power Meter Spider

SRAM 8-BOLT 104BCD

Chainring / BCD
104 mm × 4 · 45°
Offset
3 mm BOOST
Weight
86 g

Compatible cranksets

SRAM EAGLE XX, X0, XX1, GX, X1-CARBON, S100, S200, S500, S1000, 70, 90 / Cane Creek eeWings / FRAEZEN / ALUGEAR

Details
S1 Power Meter Spider SRAM 3-BOLT 104BCD

S1 Power Meter Spider

SRAM 3-BOLT 104BCD

Chainring / BCD
104 mm × 4 · 45°
Offset
3 mm BOOST
Weight
82 g

Compatible cranksets

SRAM NX, GX, SX, X1, X01, XX1 / PRAXIS CADET, LYFT / LEONARDI CAPO

Details
S1 Power Meter Spider SHIMANO MTB 104BCD

S1 Power Meter Spider

SHIMANO MTB 104BCD

Chainring / BCD
104 mm × 4 · 45°
Offset
3 mm BOOST
Weight
87 g

Compatible cranksets

SHIMANO SLX M7100 / SHIMANO XT M8100 / SHIMANO XTR M9200

Details

Track

2 models
S1 Power Meter Spider EASTON 144BCD

S1 Power Meter Spider

EASTON 144BCD

Chainring / BCD
144 mm × 5
Offset
13 mm
Weight
150 g

Compatible cranksets

EASTON EC90 / ELILEE XXE / CYBREI GP3 / INCOLOR SKYPIVOT / CENIT

Details
S1 Power Meter Spider SRAM 8-BOLT 144BCD

S1 Power Meter Spider

SRAM 8-BOLT 144BCD

Chainring / BCD
144 mm × 5
Offset
13 mm
Weight
150 g

Compatible cranksets

SRAM FORCE, RED / QUARQ / Cane Creek eeWings / CRODER SPIRIT / 5DEV

Details

RIDER GALLERY

Real riders. Real experiences.

Rides and builds shared by NEXGA S1 owners.

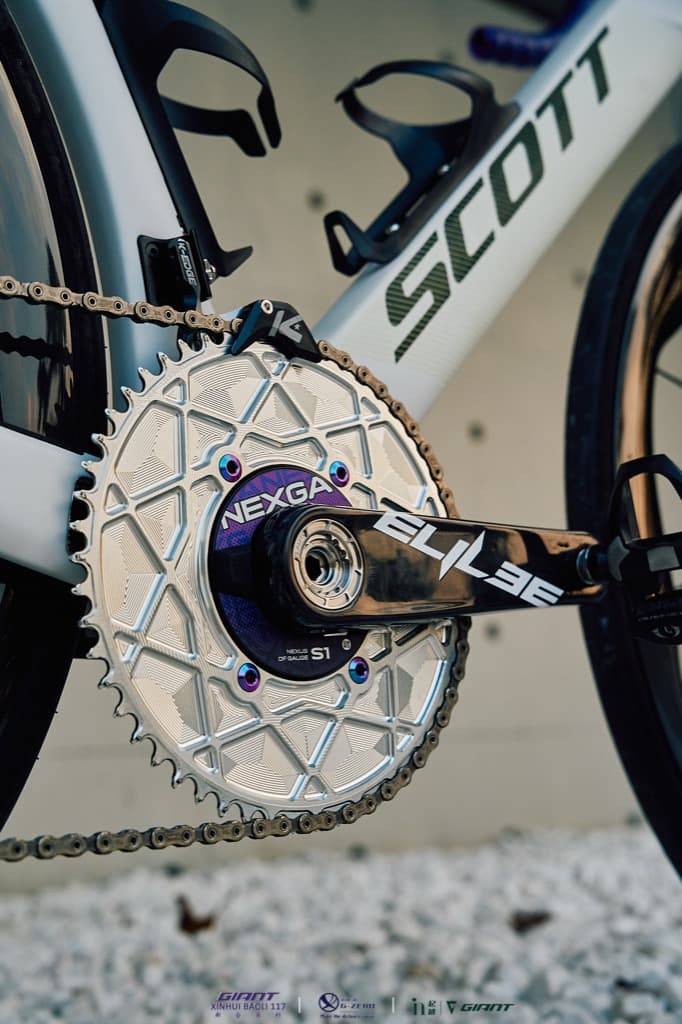

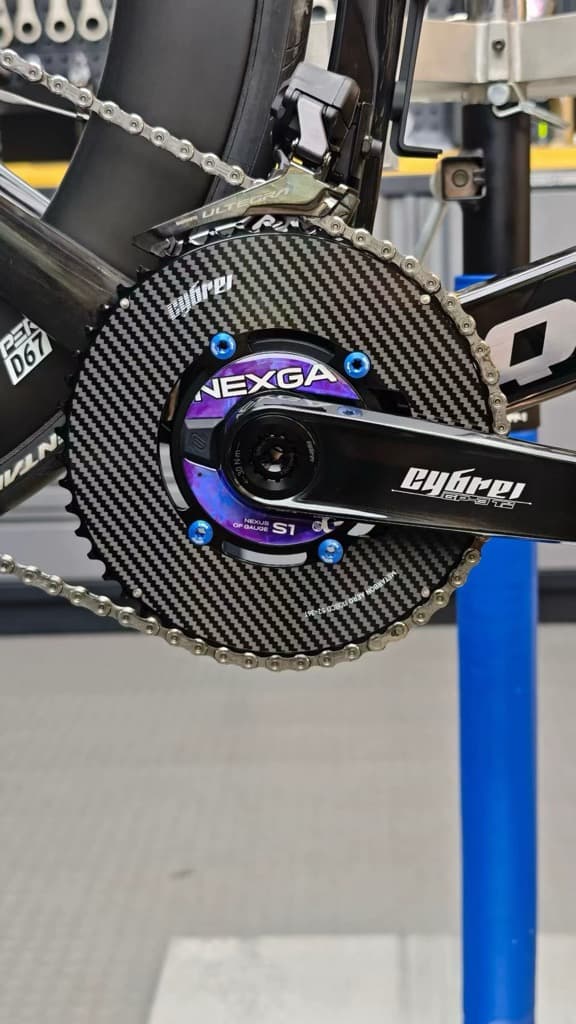

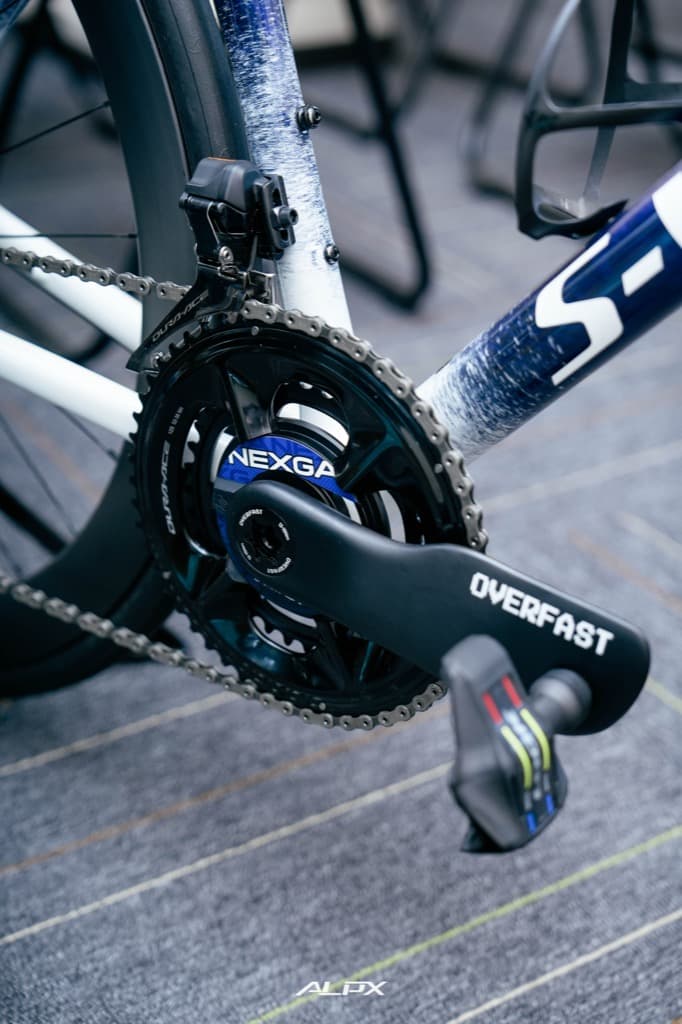

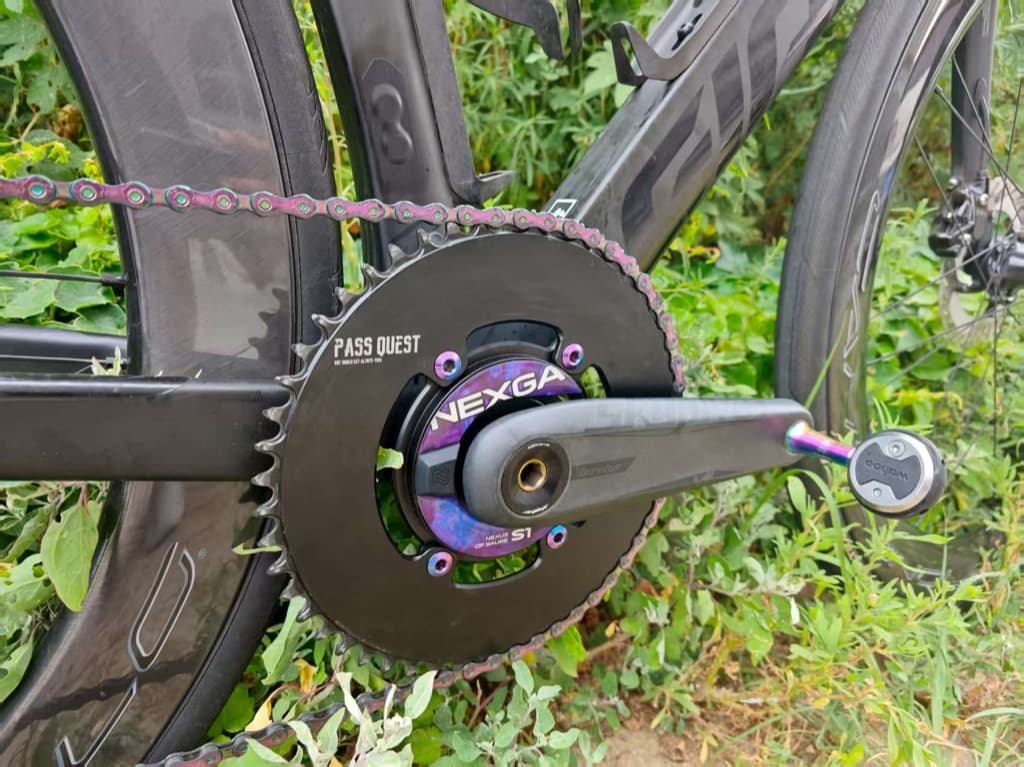

NEXGA S1 rider photo 1

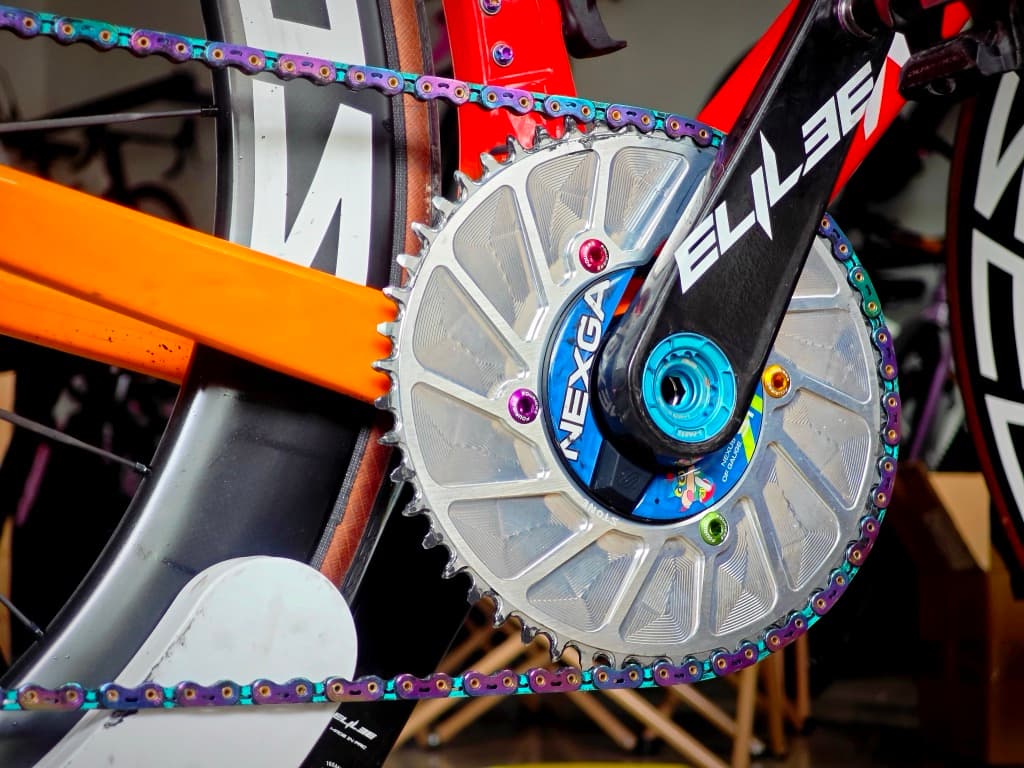

NEXGA S1 rider photo 2
NEXGA S1 rider photo 3
NEXGA S1 rider photo 4
NEXGA S1 rider photo 5

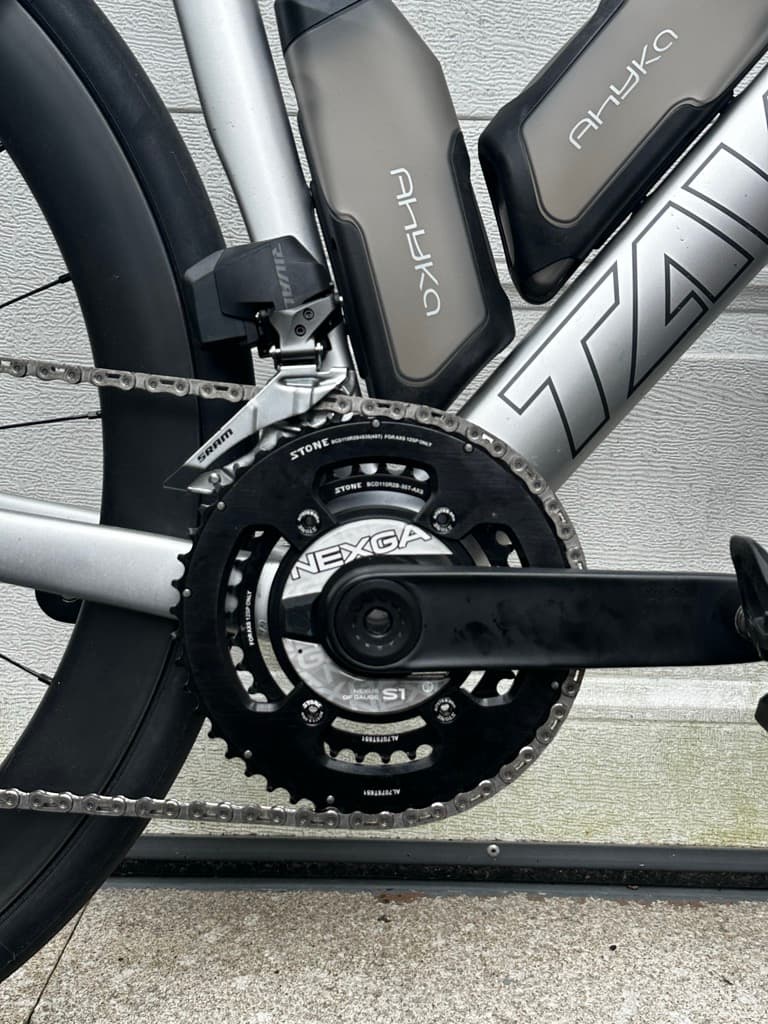

NEXGA S1 rider photo 6

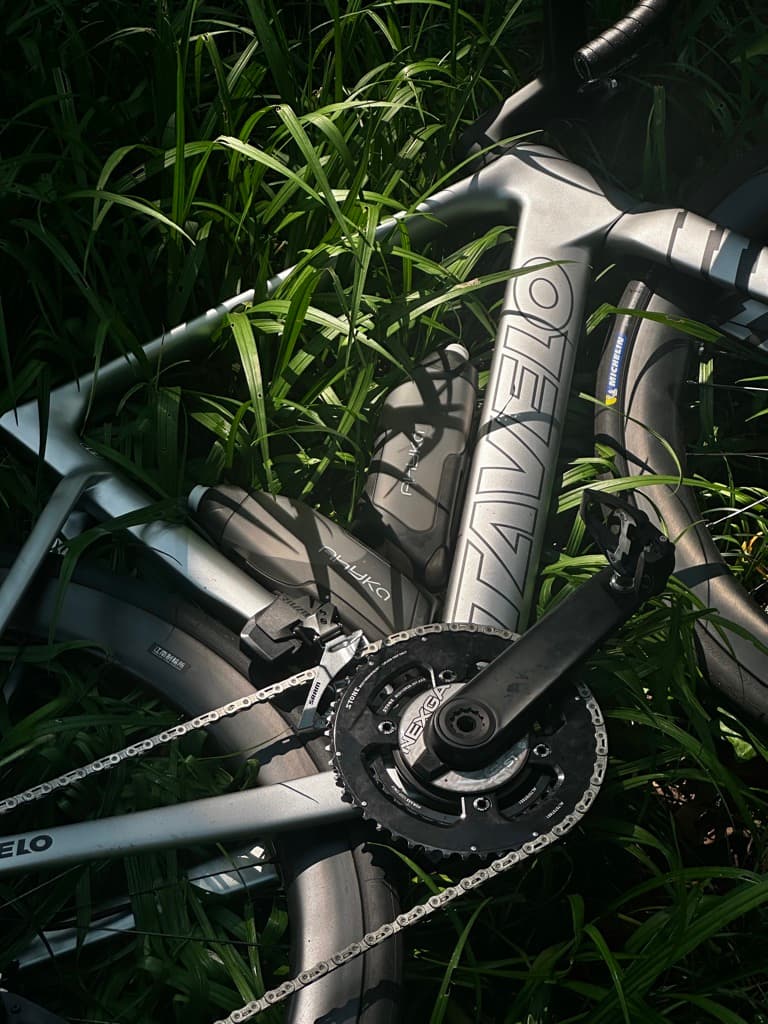

NEXGA S1 rider photo 7

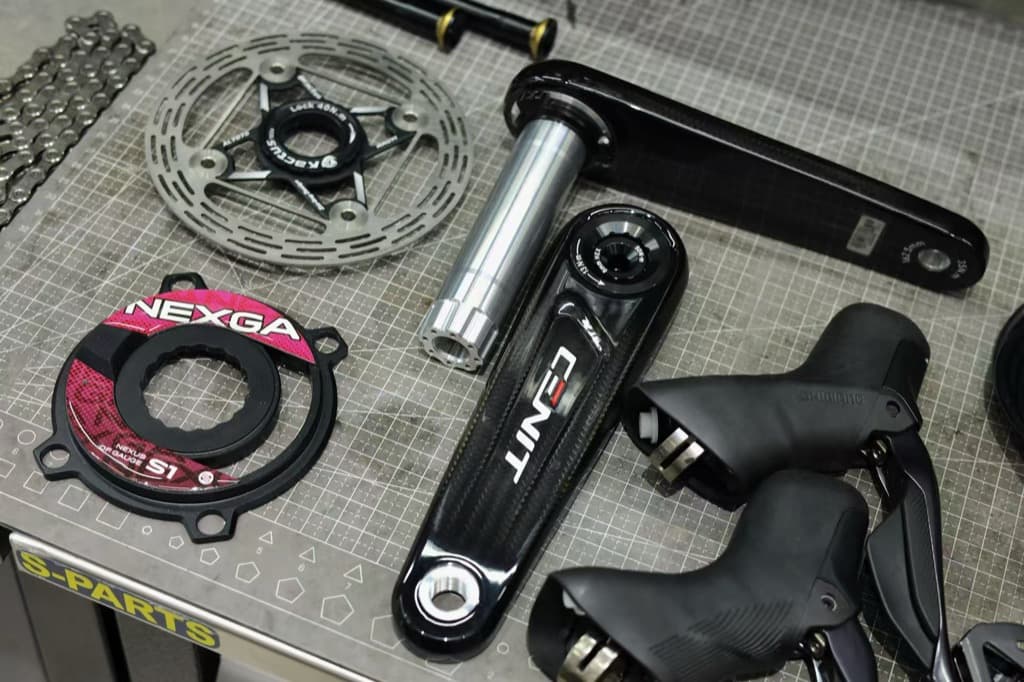

NEXGA S1 rider photo 8
NEXGA S1 rider photo 9
NEXGA S1 rider photo 10

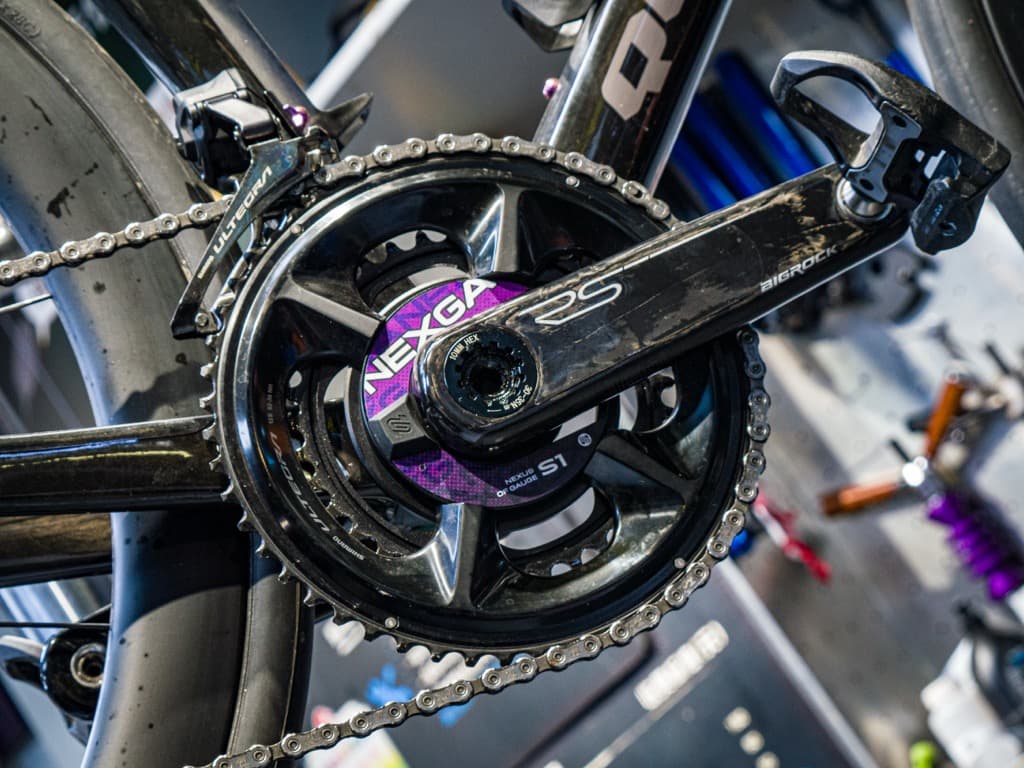

NEXGA S1 rider photo 11

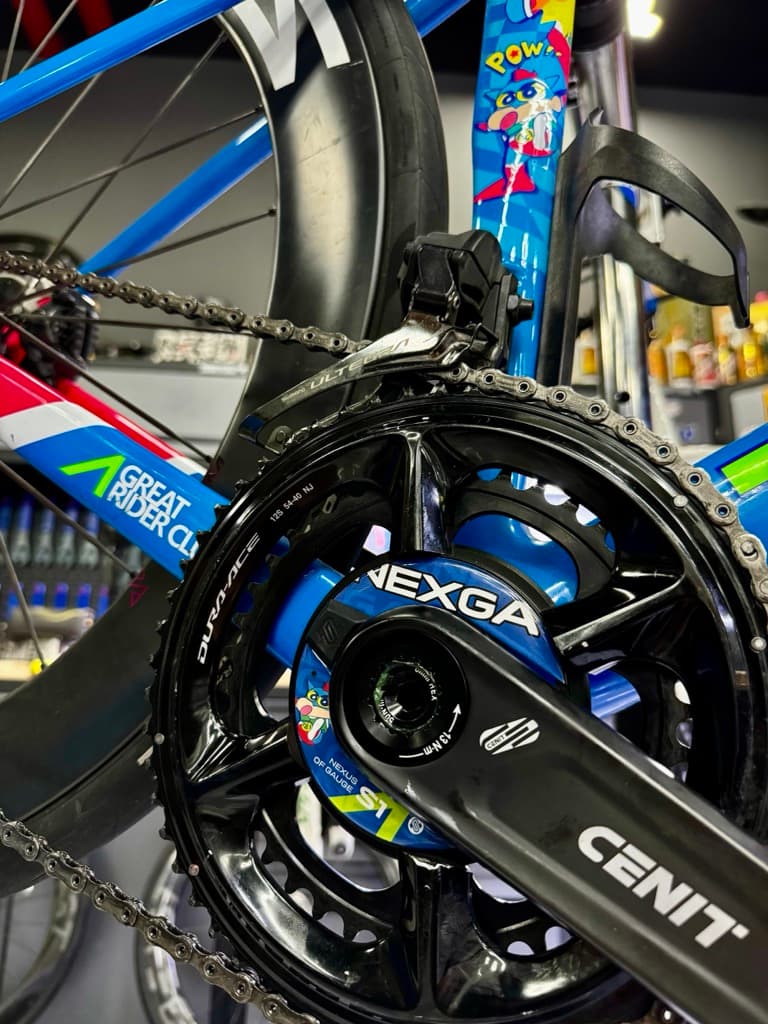

NEXGA S1 rider photo 12

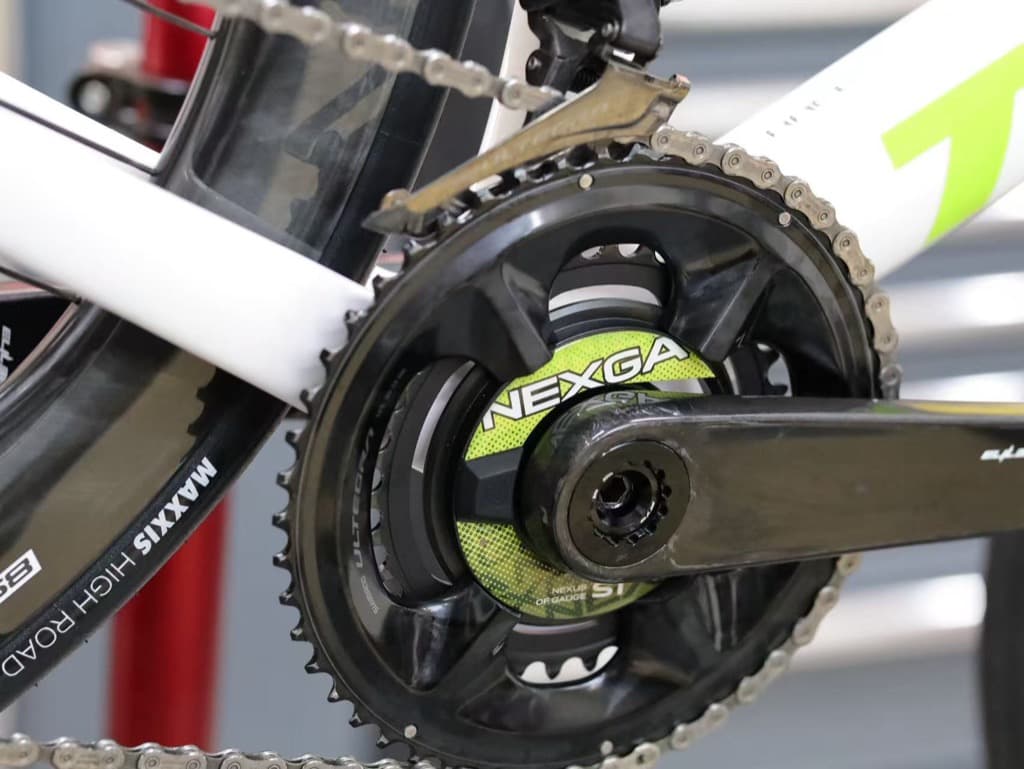

NEXGA S1 rider photo 13

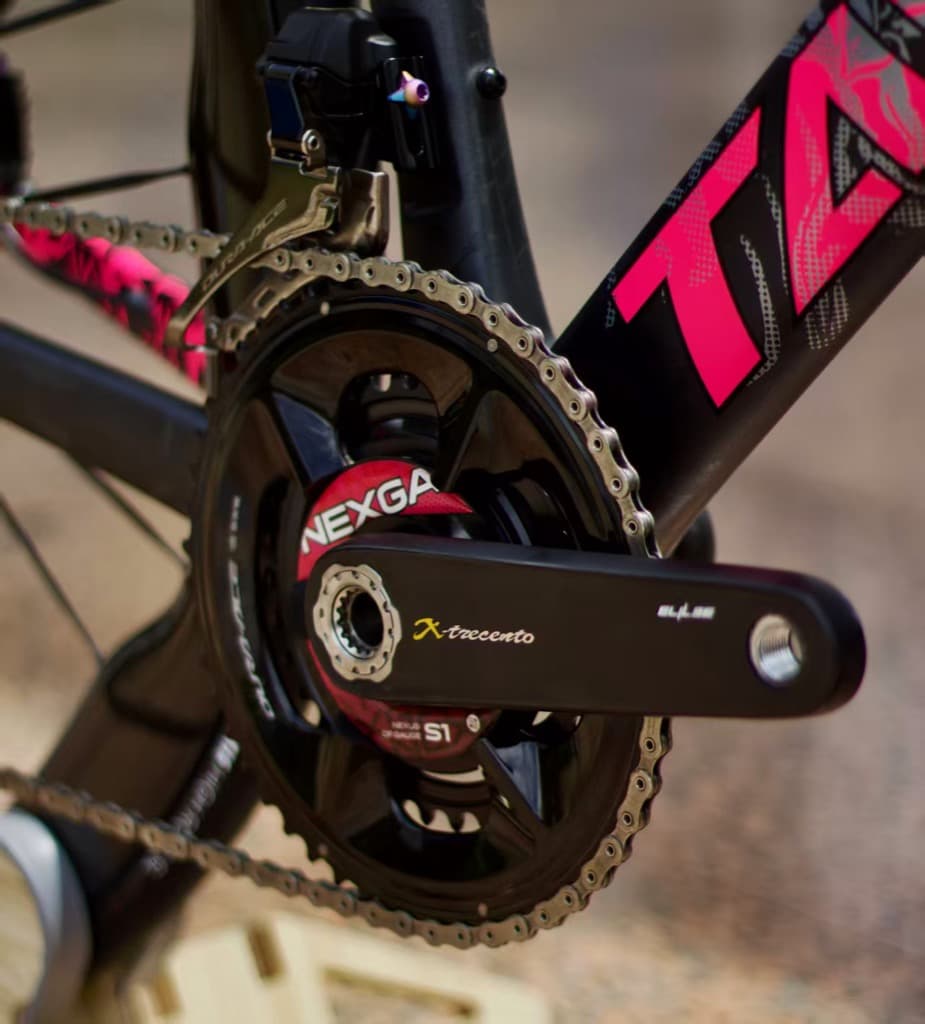

NEXGA S1 rider photo 14

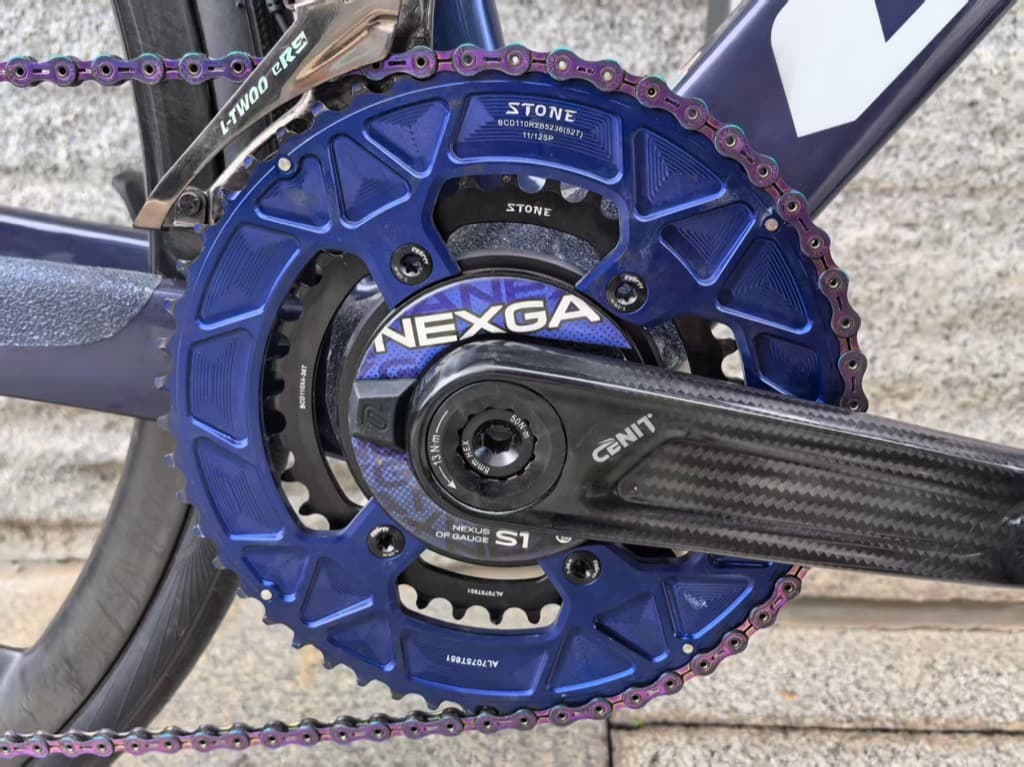

NEXGA S1 rider photo 15

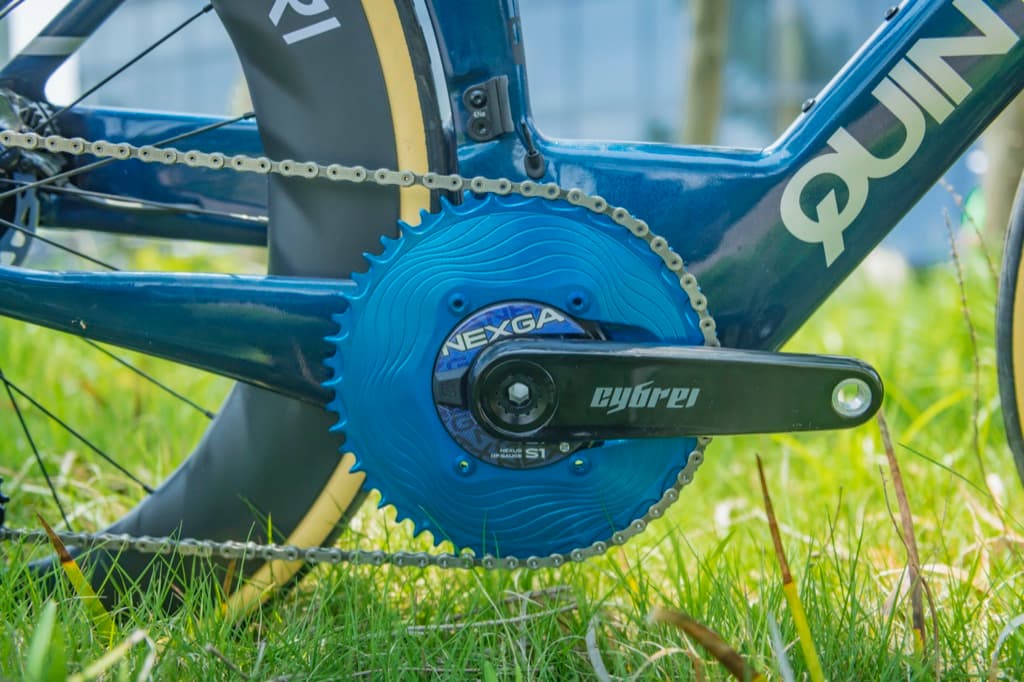

NEXGA S1 rider photo 16
